Scientists With Data Agree…A Deepwater Oil Plume Exists in the Gulf

BP want’s to deny the presence of a deepwater oil plume in the Gulf of Mexico.  The very oil plume both predicted by models published in 2003.  The very oil plume that the massive amounts of dispersant injected at depth created to prevent oil from washing ashore.  Even the government wants to deny the existence of any major oil in the Gulf of Mexico.

Remotely operated vehicle (ROV) still images taken during descent through the water column from a location less than 500 m southwest of the well site on June 1, 2010. Still images were recorded from a forward looking video camera on the ROV. A highly turbid oil-emulsion layer was evident in the depth region between 1065 and 1300 m, with small oil droplets temporarily collecting on the camera lens within this depth interval. (photos: R. Camilli, WHOI)

Research by a team led by Richard Camilli at Woods Hole Oceanographic Institute published today in Science provides concrete and damning evidence of a deepwater oil plume at 1100 meters depth that persisted for months in the Gulf of Mexico.  In late May and early June the group made observations of a substantial subsurface layer of oil between 1030 and 1300 meters near the Deepwater Horizon well site utilizing a remote operated vehicle (figure above).  From the 19th to the 28th of June, the researchers used both an autonomous underwater vehicle and a rosette both equipped with a mass spectrometer to detect selected petroleum hydrocarbons and oxygen anomalies as a result of the plume. In total, 5800 discrete measurements over 235 kilometers were taken.

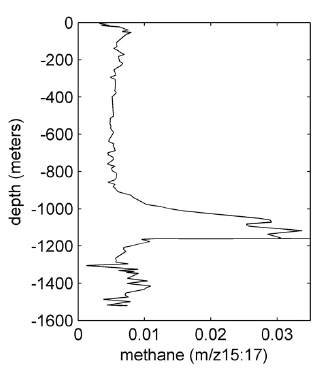

Increased methane at ~1100 m associated with the deep oil plume in the Gulf of Mexico. From Camilli et al. 2010 Science

At a distance 4 kilometers from the spill site a dense plume was detected between 1000 and 1200 meters and a diffuse plume between 50 to 500 meters. The data also indicate that at the time monitored the plume was near 200 meters high, in areas 2 kilometers in width, and extended 35 kilometers from the source. However, the authors note that the amount encountered 35 kilometers from the source was only 53% less than encountered 5.8 kilometers from the source, and “therefore it appears likely that the plume extend considerably beyond the survey bound.”

Peaks in aromatic hydrocarbons such a benzene (figure below) and toluene were discovered deep.  As the authors note “the aromatic hydrocarbons, often associated with adverse biological effects, may be in greater abundance at depth.” Based on the measurements of concentrations of benzene, toluene, ethylbenzene, and total xylenes (BTEX), the authors conclude “that even if all of the natural [methane cold] seeps in the Gulf of Mexico were flowing into the plume, it would support less than half of the BTEX found in the plume.”

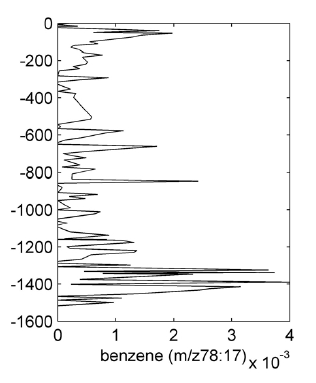

Increased benzene at ~1300 m associated with the deep oil plume in the Gulf of Mexico. From Camilli et al. 2010 Science

At the time of sampling no depreciable reduction in oxygen concentration, an indicator of microbial respiration, was detected. However, the authors caution that microbial biodegradation of the hydrocarbons may require months to significantly reduce oxygen in the water column and potentially negatively impact Gulf fisheries.

Richard Camilli, Christopher M. Reddy, Dana R. Yoerger, Benjamin A. S. Van Mooy, Michael V. Jakuba, James C. Kinsey, Cameron P. McIntyre, Sean P. Sylva, & James V. Maloney (2010). Tracking Hydrocarbon Plume Transport and Biodegradation at Deepwater Horizon Science : 10.1126/science.1195223
